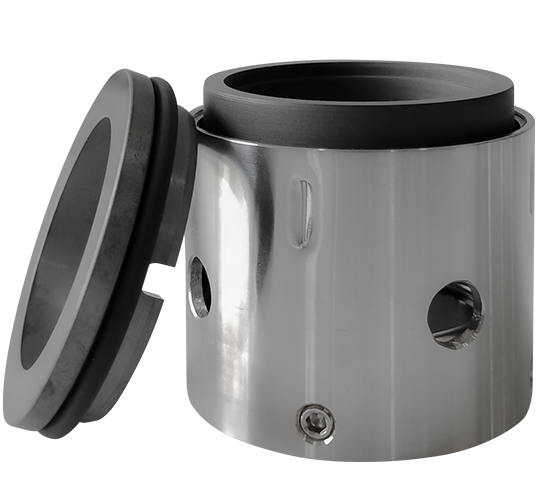

We are offering type of rubber bellow seals which is widely used in centrifugal pumps and rotating Equipment. These Rubber Bellow Mechanical Seal are highly used in water transfer Applications. Mechanical seals are simply another means of controlling leakage of process where other means are deemed to be less capable of performing the task adequately.
Rubber Bellow Seals are mainly use in waste water treatment plants for the sewage applications. Due to its compact design it can be easily mounted. It has a unique rubber bellow secondary seal, which provides a high degree of axial flexibility and protects the shaft/ sleeve from fretting. Rubber Bellow Mechanical Seals can be use regardless of direction of rotation since the driving torque is not transmitted through the coil spring. The required driving torque is through the spring and spring holder. The single coil spring will avoid effluent particle.
| Shaft Dia | 12mm to 100mm (0.5" to 4") |
|---|---|
| Pressure | 10 bar |
| Temperature | -20°C to 100°C |
| Shaft Speed | 2900 RPM (Max) |
Carbon, Sic, Ceramic, TC
Viton, Nitrile, EPDM
SS 316, SS 304
